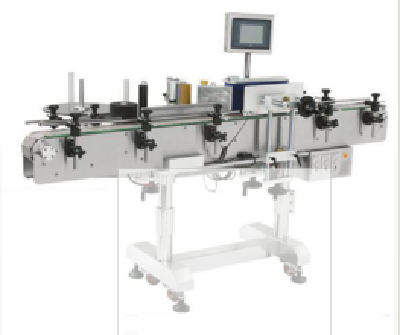

Machine for round bottle self adhesive automatic labeling machine

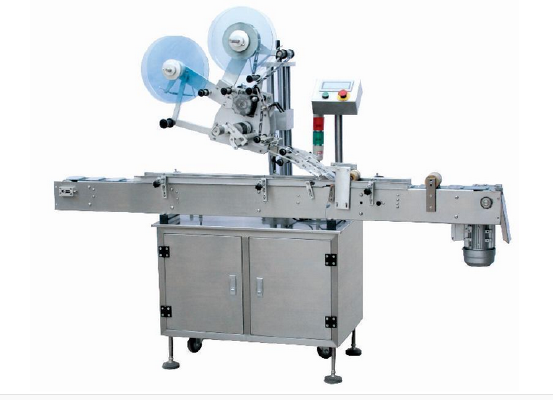

(1) roll wheel. For the passive wheel, used to place the reel label. The friction braking device with adjustable friction force is usually provided with the purpose of controlling the speed and the tension of the drum and keeping the paper smooth.

(2) buffer wheel. The worker is connected to the spring. Can swing back and forth. The purpose of the utility model is to absorb the tension force of the reel material when the device is started, keep the material in contact with each roller, and prevent the material from breaking.

(3) guide roller. Up and down two components, starting from the guide and positioning of the drum material.

(4) driving roller. By a group of active friction wheel. Usually a rubber roller, a metal roller, the end of the paper through the. Function is to drive the drum material, to achieve the normal labeling.

(5) rolling wheel. For the driving wheel with friction driving device, the function is the bottom paper after the re roll labeling. The rotation of the paper collecting wheel is not interfered with the paper of the driving wheel, and the synchronous transmission is adjusted by the friction device.

(6) stripping plate. One end of the plate is provided with an angle (generally less than 30), the purpose of which is to make the bottom paper to change direction when the bottom paper is changed, the label is easy to be out of the mark, and the bottom paper is in contact with the label.

(7) label roll. Will be separated from the bottom of the label of the label evenly, and even the level of the stick to be affixed to the items on the.
