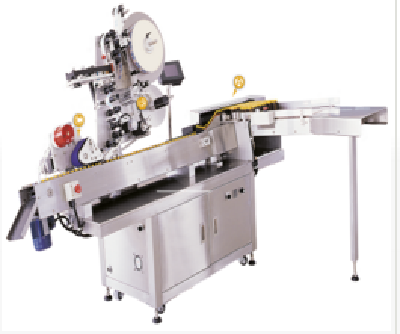

Horizontal labeling machine, product overview of the machine is suitable for a variety of industries in the round bottle and straight tube bottle of circular cylinder. By a stepping motor is sent to standard, rolling Standard Motors, conveyor belt motor, a bottle of motor are adjustable speed motor, main control by FATEK-PLC positioning of labels and labeling, labeling was fast, accurate positioning, small error, high efficiency. Second, the main technical parameters 1. A standard speed: less than or equal to 35 m / min 2 bottle specifications: Phi 10 of 50mm in diameter and 3. The label specifications: label roll core diameter: 76mm label roll diameter: 350mm label length: 20-300mm label width: 15-100mm 4. Power: 220V / 50Hz. Power: 0.7Kw 6. Motor surface normal temperature: 70 degrees. Labeling accuracy: 0.5mm. Shape size: length * width * high =1600*650*1300. Machine weight: 200kg
